The Varitube VT510 V2 is here!  A Bullet Proof Connector:

– NO Need to disassemble for soldering

– NO Threaded insulators to strip

– NO max wire gauge restrictions

– Solder before or after installation

Only 11.5mm long – note you need an additional 2.5mm-3mm to allow movement within the installation

Note –  Properly adjust the T-Nut by loosening or tightening it such that the small pin is flush with the bottom of the slot in the T-Nut on the bottom of the connector … This allows the top insulator to properly adjust and seat with the Atomizer providing smooth operation.  Pre-loading the spring with an over tightened T-Nut may result in ‘ratchety’ movement while installing an atomizer … Adjust the T-Nut prior to soldering!

Ultra low profile shoulder, self-adjusting spring loaded center pin, brass backer nut for solid and secure installation.

Made of Stainless, Brass, & High Temp insulating material this connector is perfect for box mods and the discerning modder!

• The spring carries no electrical load!
• 22mm with Air Channels
• 22mm Smooth Top
• Only 1mm thick landing pad
• Made of Stainless with High Temp Insulator, and brass – rated for 450F degrees continuous service
• Assembled connector length – 11.5mm – extends to about 14mm with atomizer installed
• Body threading – M10x0.5 – 10mm diameter … about 3/8″
• Ring Terminal for ground connection included

• Does NOT need to be disassembled for soldering!!!  Huge productivity gain!  Can be soldered after install as well if desired.  Only adjustment needed is to make sure the bottom T-Nut is not over tightened prior to soldering.

• Properly adjust the T-Nut by loosening or tightening it such that the small pin is flush with the bottom of the slot in the T-Nut on the bottom of the connector … This allows the top insulator to properly adjust and seat with the Atomizer providing smooth operation.  Pre-loading the spring with an over tightened T-Nut may result in ‘ratchety’ movement while installing an atomizer … Adjust the T-Nut prior to soldering!

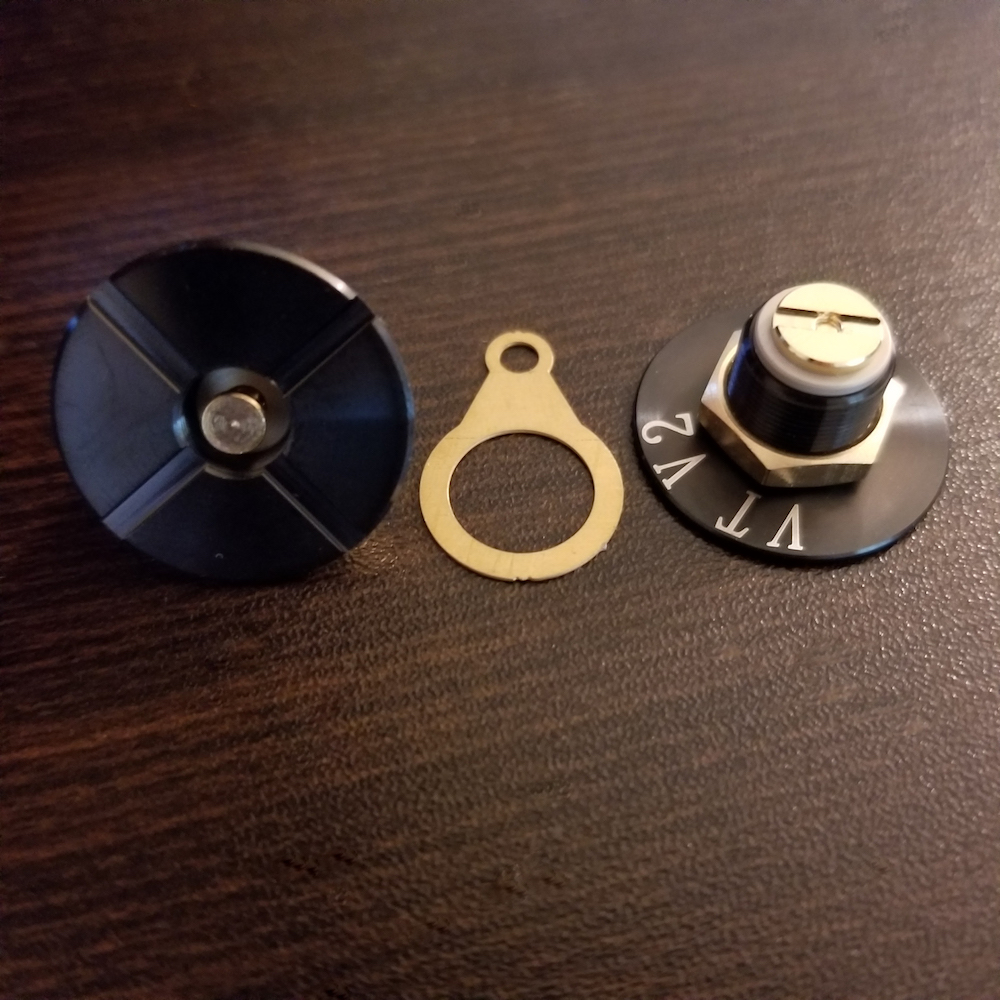

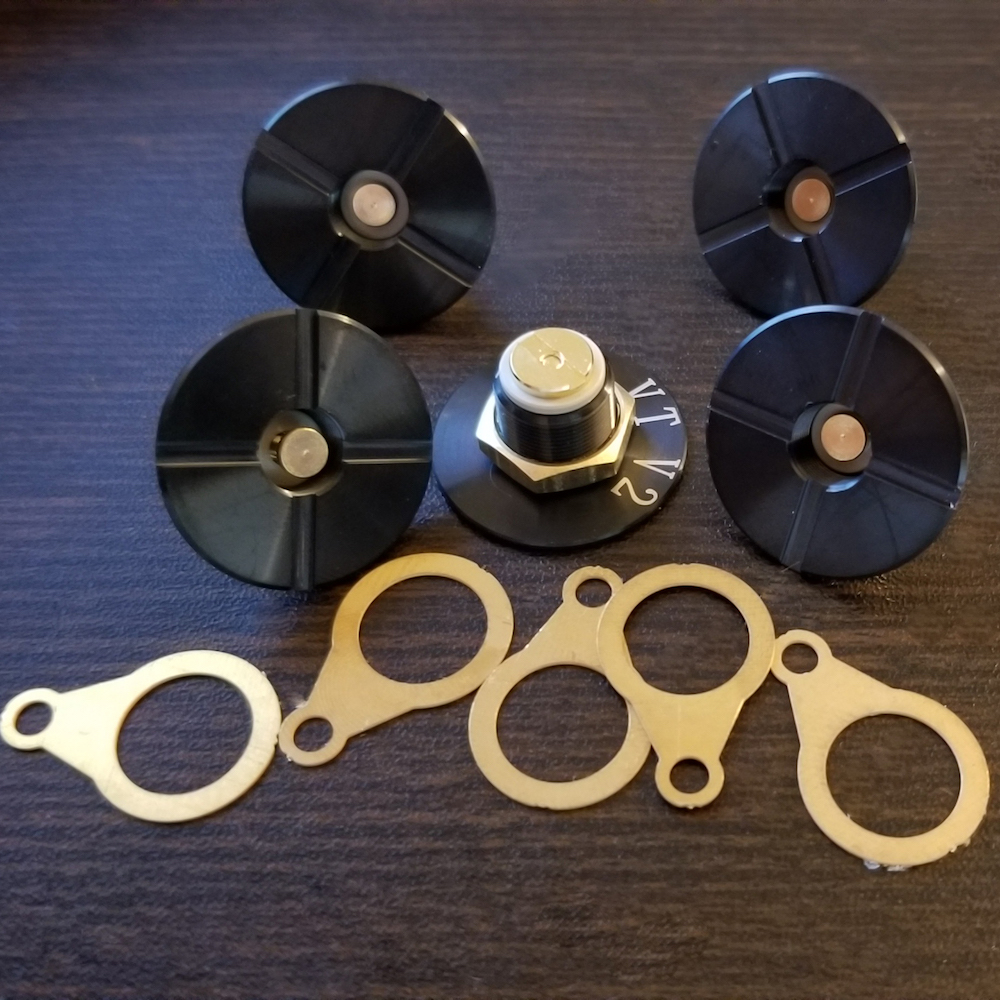

Ring Terminals Are Included
