Dicodes BF60 Chipset
$49.95
Sale!
Dicodes BF60 Chipset
$49.95

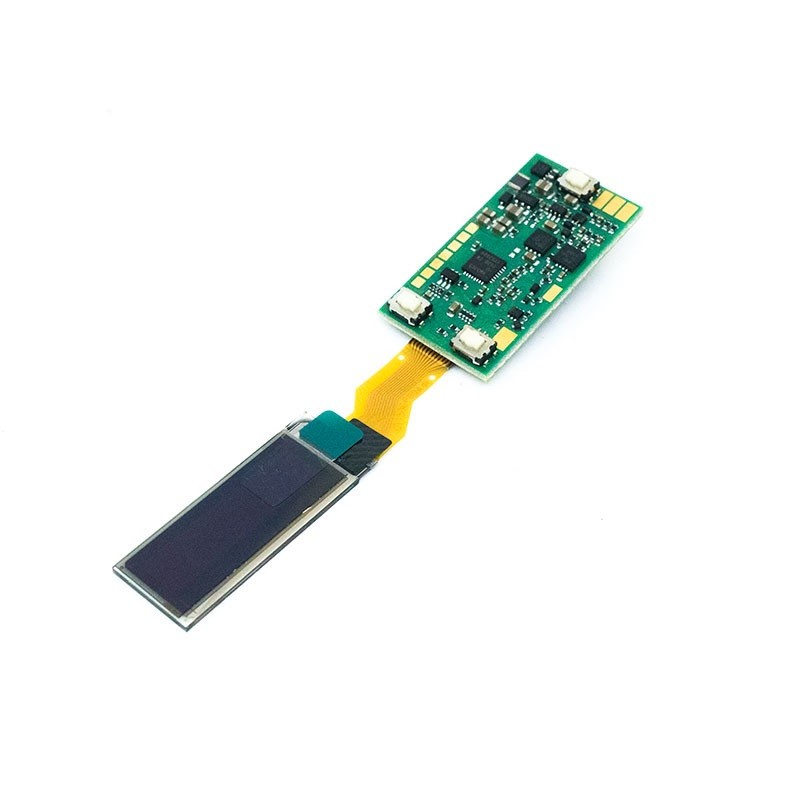

Dicodes BF60 Chipset
Circuit with the reliability and stability that have always distinguished Dicodes. Ultra small size. It has a maximum output power of 60W, including 5 modes of operation, Power (W), Temperature Control, Overheat Protection, Boost and Bypass.
Dicodes BF60 Chipset
Circuit with the reliability and stability that have always distinguished Dicodes. Ultra small size. It has a maximum output power of 60W, including 5 modes of operation, Power (W), Temperature Control, Overheat Protection, Boost and Bypass.
- Output Watt: 60W
- Temperature control with all types of wire
- Default coefficient: Ni200, Ti, W, SS, Nife30 (dicodes)
- Current output: up to 20A
- Voltage output: up to 10V
- Resistance reading range: 0.1 – 3.0 ohm (0.05 – 9.9 ohm – TC)
- Battery voltage: 2.6 – 4.2V
- Efficiency and operation guaranteed with batteries higher than 3.0V
- Circuit overheating sensor
- Display with Clip connection
- Dimensions: 32.8 x 17.4 x 8.5 mm
- Wide welding connections for Bat + / Bat- / Vout / Bat- (Output)
- Reverse polarity protection
- Fully interrupted current during shutdown
- Reverse polarity protection for external micro USB charger (Not included)
- Automatic power on after disconnecting the Micro USB charging cable (If used)
- Power on / off, by 5 clicks
- 5 Delivery Modes: Power – Temperature Control – Boost – Heater Protection – Bypass
